In stock / สินค้าพร้อมส่ง จำนวน : 2 PCS.
| Range of product | Harmony XB5R |
|---|---|
| Product or component type | Wireless and batteryless package |
| device short name | XB5R |
| Head material | Plastic |
| frequency | 2405 MHz for transmitter 2405 MHz for receiver |
| emission class | 5M00G7W |
| Antenna type | Omnidirectional |

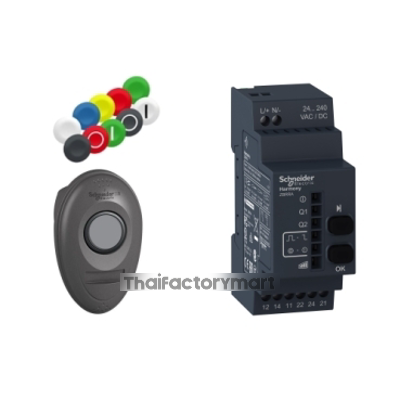

| Control type | Wireless and batteryless push-button handy box assembled on fixing collar |
|---|---|
| Type of receiver | Programmable receiver (2 relays) |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz |
| Kit composition | 1 transmitter 1 set of caps 1 receiver 1 fixing collars 1 diameter: 22 mm 1 push-button head diameter: 22 mm 1 handy box |
| Status LED | 1 LED green for power ON 2 LEDs green for relay ON 2 LEDs green for function mode 1 LED green and yellow for reception signal |
| Communication port protocol | Zigbee conforming to IEEE 802.15.4 |
| Max power consumption in W | 1 mW |
| Number of channels | 1 |
| Modulation Technique | O-QPSK |
| Bandwidth | 5 MHz |
| Antenna gain | 0 dBi |
| Customizable | No |
| Compatibility code | XB5R |
| [Us] rated supply voltage | 24...240 V |
| product certifications | CCC CSA C-Tick GOST UL |
|---|---|
| Marking | CE |
| Standards | CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-1 UL 508 |
| Radio agreement | ANATEL SRRC ICASA FCC ARIB T66 RSS |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.300 cm |
| Package 1 Width | 10.500 cm |
| Package 1 Length | 11.000 cm |
| Package 1 Weight | 299.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.166 kg |
| Warranty | 18 months |
|---|
:
:
