D4NL

"สวิตช์ล็อกประตูนิรภัยแบบมีการ์ดที่ขายดีที่สุด มีให้เลือกหลายรุ่น ขนาดกะทัดรัด และมีหลายหน้าสัมผัส"

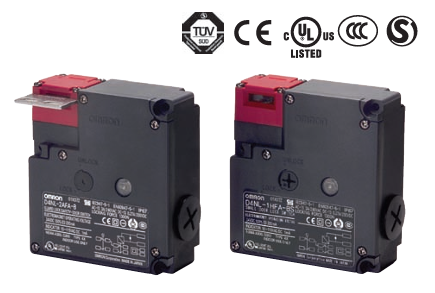

สวิตช์ประตูปลอดภัยแบบล็อกกุญแจ D4NL มีให้เลือกในแบบที่มีหน้าสัมผัสในตัวสี่หรือห้าตัว เมื่อล็อกแล้วจะมีแรงยึดกุญแจสูงสุดถึง 1300N มีทั้งแบบล็อกด้วยกลไก/ปลดล็อกด้วยโซลีนอยด์ และแบบตรงกันข้าม เพื่อให้ครอบคลุมการใช้งานทุกประเภทเมื่อใช้ร่วมกับท่อร้อยสายต่างๆ เช่น ท่อ M20

    • สวิตช์ประตูปลอดภัยพร้อมกลไกล็อกหรือปลดล็อกด้วยไฟฟ้า
    • มีแบบที่มีหน้าสัมผัสในตัวสี่หรือห้าตัว
    • แรงยึดกุญแจสูง: 1300N
    • เหมาะกับการใช้งานทั่วไปและโหลดขนาดเล็ก
    • กุญแจสามารถใช้ร่วมกับรุ่น D4GL และ D4NS ได้

For the most recent information on models that have been certified for safety standards, refer to your OMRON website

List of Models

Switches (Operation Keys are sold separately.)

Consult with your OMRON representative when ordering any models that are not listed in this table.

OMRON D4NL Switch Models
Head material Release key position Release key type Solenoid voltage/ indicator Lock and release types Contact configuration Conduit outlet Model
Plastic #1 Bottom Standard (resin) Solenoid: 24 VDC
Orange LED: 10 to 115 VAC/VDC		 Mechanical lock
Solenoid release		 1NC/1NO+1NC/1NO Pg13.5 D4NL-1AFA-B
1NC/1NO+1NC/1NO G1/2 D4NL-2AFA-B
1NC/1NO+1NC/1NO M20 D4NL-4AFA-B
1NC/1NO+2NC Pg13.5 D4NL-1BFA-B
1NC/1NO+2NC G1/2 D4NL-2BFA-B
1NC/1NO+2NC M20 D4NL-4BFA-B
2NC+1NC/1NO Pg13.5 D4NL-1CFA-B
2NC+1NC/1NO G1/2 D4NL-2CFA-B
2NC+2NC M20 D4NL-4CFA-B
2NC+2NC Pg13.5 D4NL-1DFA-B
2NC+2NC G1/2 D4NL-2DFA-B
2NC+2NC M20 D4NL-4DFA-B
2NC+2NC Pg13.5 D4NL-1EFA-B
2NC+2NC G1/2 D4NL-2EFA-B
2NC+2NC M20 D4NL-4EFA-B
2NC+2NC Pg13.5 D4NL-1FFA-B
2NC+2NC G1/2 D4NL-2FFA-B
2NC+2NC M20 D4NL-4FFA-B
2NC+2NC 1/2-14NPT D4NL-4FFA-B-NPT
3NC+1NC/1NO Pg13.5 D4NL-1GFA-B
3NC+1NC/1NO G1/2 D4NL-2GFA-B
3NC+2NC M20 D4NL-4GFA-B
3NC+2NC Pg13.5 D4NL-1HFA-B
3NC+2NC G1/2 D4NL-2HFA-B
3NC+2NC M20 D4NL-4HFA-B
3NC+2NC Pg13.5 D4NL-1AFG-B
3NC+2NC G1/2 D4NL-2AFG-B
3NC+2NC M20 D4NL-4AFG-B
3NC+2NC Pg13.5 D4NL-1BFG-B
3NC+2NC G1/2 D4NL-2BFG-B
3NC+2NC M20 D4NL-4BFG-B
3NC+2NC Pg13.5 D4NL-1CFG-B
3NC+2NC G1/2 D4NL-2CFG-B
3NC+2NC M20 D4NL-4CFG-B
3NC+2NC Pg13.5 D4NL-1DFG-B
3NC+2NC G1/2 D4NL-2DFG-B
3NC+2NC M20 D4NL-4DFG-B
3NC+2NC Pg13.5 D4NL-1EFG-B
3NC+2NC G1/2 D4NL-2EFG-B
3NC+2NC M20 D4NL-4EFG-B
3NC+2NC G1/2 D4NL-1FFG-B
3NC+2NC M20 D4NL-4HFG-B

Note 1: Switches with metal heads can also be manufactured upon request. Ask your OMRON representative for details.

Note 2: Models with Korean S-mark certification.

Head material Release key position Release key type Solenoid voltage / indicator Lock and release types Contact configuration
(Certified direct opening NC contact)		 Conduit outlet Model
Plastic *1 Bottom Special release key (resin) Solenoid: 24 VDC
Orange LED: 10 to 115 VAC/VDC		 Mechanical lock
Solenoid release		 1NC/1NO+1NC/1NO Pg13.5 D4NL-1AFA-B4
1NC/1NO+1NC/1NO G1/2 D4NL-2AFA-B4
1NC/1NO+1NC/1NO M20 D4NL-1BFA-B4
1NC/1NO+2NC G1/2 D4NL-2BFA-B4
1NC/1NO+2NC M20 D4NL-4BFA-B4
2NC+1NC/1NO Pg13.5 D4NL-1CFA-B4
2NC+1NC/1NO G1/2 D4NL-2CFA-B4
2NC+2NC M20 D4NL-4CFA-B4
Solenoid lock
Mechanical release		 1NC/1NO+1NC/1NO Pg13.5 D4NL-1AFG-B4
1NC/1NO+1NC/1NO G1/2 D4NL-2AFG-B4
1NC/1NO+2NC M20 D4NL-1BFG-B4
2NC+1NC/1NO Pg13.5 D4NL-2CFG-B4
2NC+2NC G1/2 D4NL-1DFG-B4
2NC/1NO+1NC/1NO M20 D4NL-2EFG-B4 *2
3NC+1NC/1NO Pg13.5 D4NL-1FGF-B4 *2
3NC+2NC G1/2 D4NL-2HFG-B4 *2

*1. Switches with metal heads can also be manufactured upon request. Ask your OMRON representative for details.
*2. Models with Korean S-mark certification.

Head material Release key position Release key type Solenoid voltage / indicator Lock and release types Contact configuration
(Certified direct opening NC contact)		 Conduit outlet Model
Plastic Bottom Standard (metal) Solenoid: 24 VDC
Orange LED: 10 to 115 VAC/VDC		 Mechanical lock
Solenoid release		 2NC/1NO+1NC/1NO G1/2 D4NL-2EFA-B-SJ *2
2NC/1NO+1NC/1NO M20 D4NL-4EFA-B-SJ *2
2NC/1NO+2NC M20 D4NL-2FFA-B-SJ *2
3NC+1NC/1NO G1/2 D4NL-2GFA-B-SJ *2
3NC+2NC M20 D4NL-4GFA-B-SJ *2
Solenoid lock
Mechanical release		 2NC/1NO+1NC/1NO G1/2 D4NL-2EFG-B-SJ *2
2NC/1NO+1NC/1NO M20 D4NL-4EFG-B-SJ *2
2NC/1NO+2NC G1/2 D4NL-2FFG-B-SJ *2
2NC/1NO+2NC M20 D4NL-4FFG-B-SJ *2
3NC+1NC/1NO G1/2 D4NL-2GFG-B-SJ *2
3NC+1NC/1NO M20 D4NL-4GFG-B-SJ *2
3NC+2NC M20 D4NL-4HFG-B-SJ *2

*2. Models with Korean S-mark certification.

Operation Keys
Type Model
Horizontal mounting D4DS-K1
Vertical mounting D4DS-K2
Adjustable mounting
(Horizontal)		 D4DS-K3
Adjustable mounting
(Horizontal/Vertical)		 D4DS-K5
