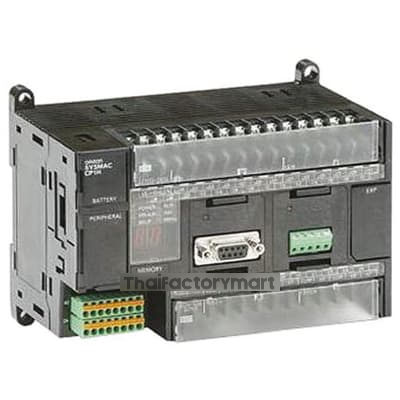

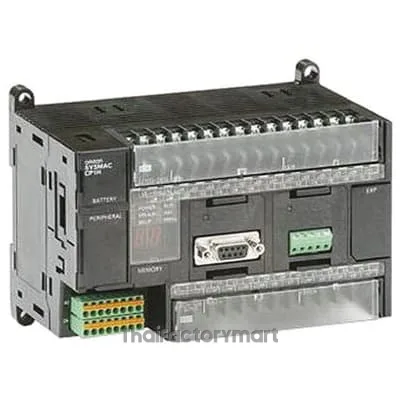

CPU 20K Step; 12DI/8DO/4AI/2AO AC power supply,transistor (sinking) outputs
CP1H-XA40DT-A
เอกสาร
THB24,500.00
จัดส่งภายใน 2–5 วัน
รายละเอียดสินค้า
• Pulse output for 4 axes. Advanced power for high-precision positioning control.
• High-speed counters. Differential phases for 4 axes. Easily handles multi-axis control with a single unit.
• Eight interrupt inputs are built in. Faster processing of approximately 500 instructions speeds up the entire system.
• Serial communications. Two ports. Select Option Boards for either RS-232C or RS-485 communications.
• Ethernet Communications. Enabled by using an Option Board. Two ports can be used as an Ethernet port to perform. Ethernet communications between the CP1H and a host computer.
• Built-in Analog I/O. XA CPU Units provide 4 input words and 2 output words.
• USB Peripheral Port. Another standard feature.
• The structured text (ST) language. Makes math operations even easier.
• Can be used for the CP1W series and CJ series Unit. The extendibility of it is preeminently good.
• LCD displays and settings. Enabled using Option Board.
ข้อมูลสินค้า
| Product | Description |
| PLC, 100-240 VAC supply, 24 x 24 VDC inputs, 16 x relay outputs 2 A, 1 x analog input, 20K steps program + 32K words data memory | |
| PLC, 24 VDC supply, 24 x 24 VDC inputs, 16 x NPN outputs 0.3 A, 1 x analog input, 20K steps program + 32K words data memory | |
| PLC, 24 VDC supply, 24 x 24 VDC inputs, 16 x PNP outputs 0.3 A, 1 x analog input, 20K steps program + 32K words data memory | |
| PLC, 100-240 VAC supply, 24 x 24 VDC inputs, 16 x relay outputs 2 A, 4 x analog inputs, 2 x analog outputs, 20K steps program + 32K words data memory | |
| PLC, 24 VDC supply, 24 x 24 VDC inputs, 16 x NPN outputs 0.3 A, 4 x analog inputs, 2 x analog outputs, 20K steps program + 32K words data memory | |
| PLC, 24 VDC supply, 24 x 24 VDC inputs, 16 x PNP outputs 0.3 A, 4 x analog inputs, 2 x analog outputs, 20K steps program + 32K words data memory |
