| Product name | Specifications | Model *1 |
|---|---|---|
| NA5-15W | 15.4 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 1280 × 800 dots, Frame color: Silver |
NA5-15W101S-V1 |
| 15.4 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 1280 × 800 dots, Frame color: Black |
NA5-15W101B-V1 | |
| NA5-12W | 12.1 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 1280 × 800 dots, Frame color: Silver |
NA5-12W101S-V1 |
| 12.1 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 1280 × 800 dots, Frame color: Black |
NA5-12W101B-V1 | |
| NA5-9W | 9 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 800 × 480 dots, Frame color: Silver |
NA5-9W001S-V1 |
| 9 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 800 × 480 dots, Frame color: Black |
NA5-9W001B-V1 | |
| NA5-7W | 7 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 800 × 480 dots, Frame color: Silver |
NA5-7W001S-V1 |
| 7 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 800 × 480 dots, Frame color: Black |
NA5-7W001B-V1 | |
| High-pressure Waterproof Attachment |
This metal frame is for high-pressure waterproofing. Install it to conform to UL Type 4X standards. UL Type 4X is the rating for high-pressure wash-down applications with a flow rate of 246 liter/min. |
NA-15WATW01 |
| NA-12WATW01 | ||
| NA-9WATW01 | ||
| NA-7WATW01 |

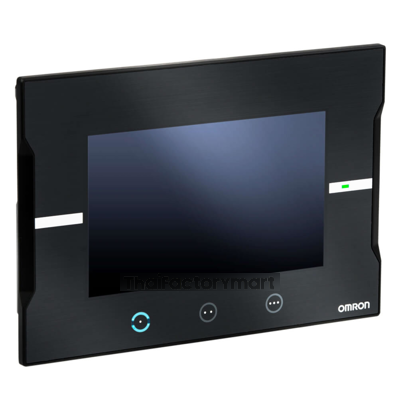

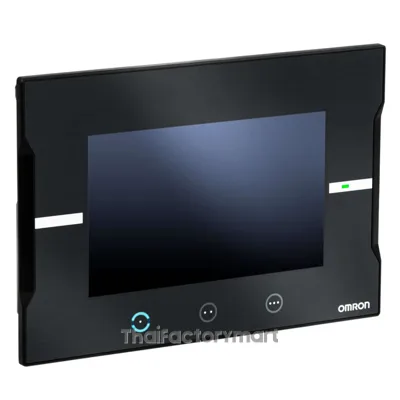

NA5-7W001B-V1 Touch screen HMI, 7 inch wide screen, TFT LCD, 24bit color, 800x480 resolution, frame color : Black
NA5-7W001B-V1
เอกสาร
-
จัดส่งภายใน 2–5 วัน
รายละเอียดสินค้า
Specifications
| Screen diagonal | 7 in |
| Number of pixels, horizontal | 800 |
| Number of pixels, vertical | 480 |
| Type of display | TFT |
| Number of colors of the display | 16777216 |
| Frame color | Black |
| Number of Ethernet ports | 2 |
| Number of USB ports | 3 |
| Number of RS-232 ports | 1 |
| Number of RS-422 ports | 0 |
| Number of RS-485 ports | 0 |
| Degree of protection (IP), front side | IP65 |
| Width of the front | 236 mm |
| Height of the front | 165 mm |
| Width of panel cutout | 196 mm |
| Height of panel cutout | 140 mm |
| Built-in depth | 63.1 mm |
| Product Weight (unpacked) | 1300 g |
ข้อมูลสินค้า
NA5-[]W
Options
| Product name | Specifications | Model | |
|---|---|---|---|
| SD memory card |
2 GB | HMC-SD292 | |
| 4 GB | HMC-SD492 | ||
| 16 GB | HMC-SD1A2 | ||
| USB Memory | 2 GB | FZ-MEM2G | |
| 16 GB | FZ-MEM16G | ||
| Replacement Battery |
Battery life: 5 years (at 25°C). This Battery is provided as an accessory. | CJ1W-BAT01 | |
| RS-232C Connecting Cable |
D-sub, 9-pin plug to D-sub, 9-pin plug | Length: 2m | XW2Z-200T |
| Length: 5m | XW2Z-500T | ||
| D-sub, 9-pin plug to discrete wire | Length: 2m | XW2Z-200T-3 | |
| Length: 5m | XW2Z-500T-3 | ||
| Anti-reflection Sheets |
For the NA5-15W. Attach a Sheet to the screen to protect against diffused reflections and dirt. The entire Sheet is colorless and transparent. Five Sheets are provided in one set. |
NA-15WKBA04 | |
| For the NA5-12W. Attach a Sheet to the screen to protect against diffused reflections and dirt. The entire Sheet is colorless and transparent. Five Sheets are provided in one set. |
NA-12WKBA04 | ||
| For the NA5-9W. Attach a Sheet to the screen to protect against diffused reflections and dirt. The entire Sheet is colorless and transparent. Five Sheets are provided in one set. |
NA-9WKBA04 | ||
| For the NA5-7W. Attach a Sheet to the screen to protect against diffused reflections and dirt. The entire Sheet is colorless and transparent. Five Sheets are provided in one set. |
NA-7WKBA04 | ||
Soft-NA
| Product name | Specifications | Number of licenses |
Media | Model |
|---|---|---|---|---|
| Soft-NA | The Soft-NA is software that displays information on FA manufacturing sites while providing safety, reliability, and maintainability as an industrial display on which operations can be performed as necessary. The Soft-NA runs on the following OS: Windows 10 Pro Version 1903 or later 64 bit |
- (Media only) | DVD | NA-RTSM |
| 1 license | USB dongle | NA-RTLD01 | ||
| 3 licenses | NA-RTLD03 | |||
| 10 licenses | NA-RTLD10 |
System Requirements
When using a commercially-available PC
| Item | Requirement | |
|---|---|---|
| OS | Windows 10 Pro Version 1903 or later 64 bit | |
| Processor | Intel Atom® x5-E3940 equivalent or higher processor | |
| RAM | 4 GB or more | |
| Free space in the hard drive necessary for installation |
1 GB or more | |
| Optical disk drive | DVD-ROM drive | |
| Communication port | USB | USB2.0 Type-A x 2 |
| LAN | Ethernet x 2 | |
When using the industrial PC platform NY-series
The supported models are shown below.
• NYB[][]-[][]3[][] *1
• NYB[][]-[][]4[][] *1
• NYP[][]-[][]3[][]-[][][][][][][][] *1
• NYP[][]-[][]4[][]-[][][][][][][][] *1
• NY5[][]-1[]00-[][][]44[][][][] *1
*1. Need to be supported only when used on the OS installed during factory dispatch.
Automation Software Sysmac Studio
The Sysmac Studio is the software that provides an integrated environment for setting, programming, debugging and maintenance of machine automation controllers including the NJ/NX-series CPU Units, NY-series Industrial PC, EtherCAT Slave, and the HMI.
For details, refer to your local OMRON website and Sysmac Studio Catalog (Cat. No. P138).
USB Cable
| Product name | Specifications |
|---|---|
| USB Cable | Use commercially available USB cable. Specifications: USB 2.0 cable (A connector - B connector), 5.0 m max. |
Recommended Network Devices
Industrial Switching Hubs
| Product name | Functions | No. of ports | Accessories | Current consumption (A) |
Model |
|---|---|---|---|---|---|
| Industrial Switching Hubs |
Quality of Service (QoS): EtherNet/IP control data priority 10/100BASE-TX, Auto-Negotiation |
5 | Power supply connector |
0.07 | W4S1-05D |
Recommended Ethernet Communications Cables
Use STP (shielded twisted-pair) cable of category 5 or higher
| Product name | Recommended manufacturer | Model | |
|---|---|---|---|
| Wire Gauge and Number of Pairs: AWG24, 4-pair Cable |
Cables | Hitachi Metals, Ltd | NETSTAR-C5E SAB 0.5 × 4P CP |
| Kuramo Electric Co. | KETH-SB | ||
| RJ45 Connectors | Panduit Corporation | MPS588 | |
