Industrial Ethernet switches Moxa EDS-205A Unmanaged Ethernet switch with 5 10/100BaseT(X) ports, -10?to?60Â°C operating?temperature

EDS-205A

แบรนด์ : MOXA สินค้า Industrial Ethernet switches

THB4,800.00

จัดส่งภายใน 2–5 วัน

รายละเอียดสินค้า

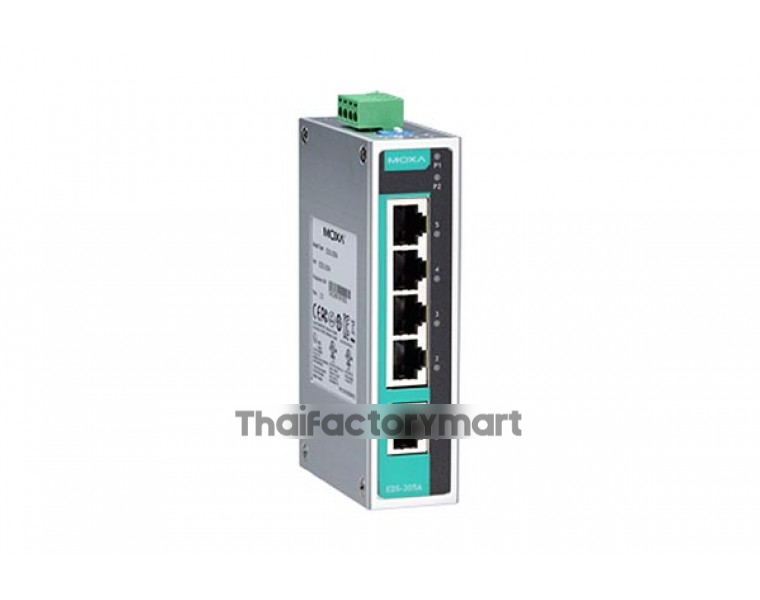

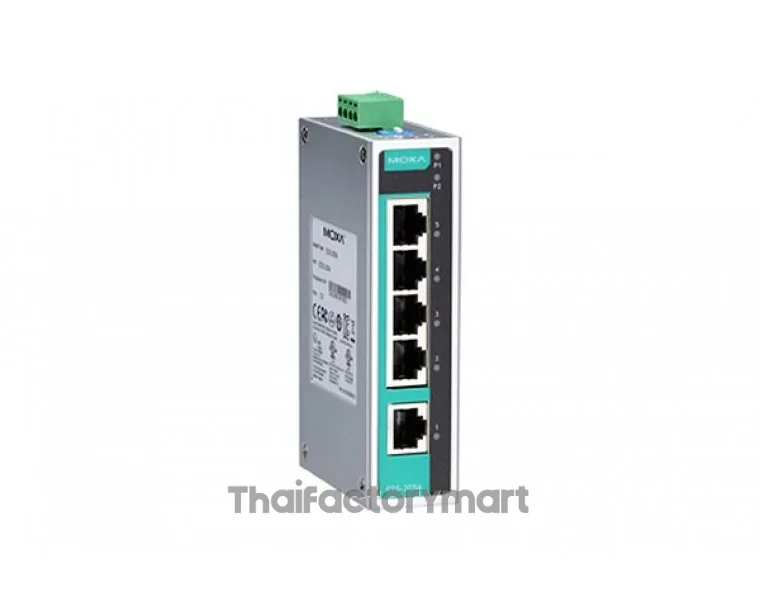

Switch 5 Port MOXA (EDS-205A)

Features and Benefits

Brand	moxa
Model	EDS-205
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control
Processing Type	Store and Forward
MAC Table Size	2 K
Packet Buffer Size	768 kbits
Interface	10/100BaseT(X) Ports (RJ45 connector) : Auto MDI/MDI-X connection Full/Half duplex mode 100BaseFX Ports (multi-mode SC connector) : EDS-208-M-SC: Supported 100BaseFX Ports (multi-mode ST connector) : EDS-208-M-ST: Supported
Input Voltage	24 VDC
Input Current	EDS-208: 0.07 A @ 24 VDC EDS-208-M Series: 0.1 A @ 24 VDC
Operating Voltage	12 to 48 VDC
Connection	1 removable 3-contact terminal block(s)
Overload Current Protection	2.5 A @ 24 VDC
Reverse Polarity Protection	Supported
Housing	Plastic
IP Rating	IP30
Installation	DIN-rail mounting
MTBF	Time EDS-208: 401,624 hrs EDS-208-M Series: 368,353 hrs Standards Telcordia (Bellcore), GB
Standards and Certifications	Safety - UL 508 EMC - EN 55032/24 EMI - CISPR 32, FCC Part 15B Class A EMS - IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV - IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m - IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV - IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV - IEC 61000-4-6 CS: 3 V - IEC 61000-4-8 PFMF Shock - IEC 60068-2-27 Vibration - IEC 60068-2-6 Freefall - IEC 60068-2-31
Environment	Operating Temperature : -10 to 60°C (14 to 140°F) Storage Temperature (package included) : -40 to 85°C (-40 to 185°F) Ambient Relative Humidity : 5 to 95% (non-condensing)
Dimension	(W x D x H) : 4.00 x 10.00 x 8.65 cm
Net Weight	170.00 KG
