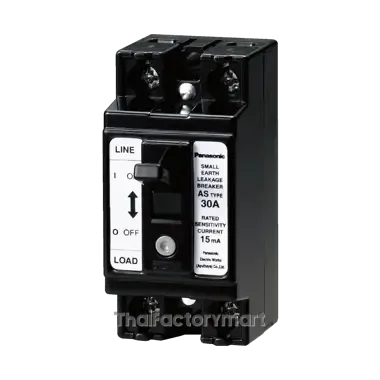

Small Earth Leakage Breaker, Small Type, 30A
BJS3030NYT
เอกสาร
-
รายละเอียดสินค้า
Technical specification
Item Code | BJS3030NYT |
---|---|
Product | Small Earth Leakage Breaker |
Type | Small Type |
Voltage | Rated Voltage: AC 120-240V |
Current | 30A |
Weight | 0.09kg |
Number of Poles and Elements | 2P0E |
Residual Operating Current | 30mA |
Residual Non-Operating Current | 15mA |
Rated Short-Time Current | 1.5kA |
Phase and Wiring Configuration | 1Ø2W |
Operating Time | Within 0.1 sec. |
Handle Type | Standard |
Overload Current Tripping Mechanism | None |
Connecting Method | For Direct Installation of Electrical Wiring |
Tightening torque | 1.6-2.0N・m 16.3-20.4kgf・cm |
- Solderless terminals (with srap) φ1.6-φ2.6 5.5-8mm²
- When using electrical appliance wire or other stranded wire (1.25-3.5mm²) use bar lug terminals WV2500 1.25-2mm² (WV2501 2.0-3.5mm²)
- Tightening torque: 1.6-2.0N・m 16.3-20.4kgf・cm
