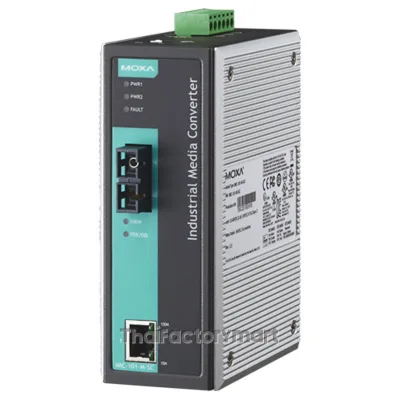

Industrial Media Converter, multi mode, SC, -40 to 75°C, IECEx Certification Approval
IMC-101-M-SC-T-IEX
เอกสาร
THB13,500.00
จัดส่งภายใน 2–5 วัน
รายละเอียดสินค้า
- Ethernet to multimode fiber optic converter
- 1 10/100 Mbps Ethernet port
- 1 10/100 Mbps SC fiber-optic port
- Input power 12V DC, 0.32A to 45V DC
- Suitable for work in a wide range of temperatures
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | : 1 SC Port |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 1000Mb Fiber optic single mode (Gigabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| M12 port | |
| Alert Output | |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.3, IEEE 802.3u |
| General | |
| Maximum cable length for data transfer | 5Km with multi mode fiber optic cable |
| MTBF | 401,000 hour |
| Power Requirements | |
| Power consumed | 12V DC to 45V DC, 0.3A |
| Type of power input | Power Input Jack |
| POE Support | |
| Protection against reverse voltage | |
| Protection against overflow | |
| LED Indicators | |
| LNK/ACT | |
| Power | |
| Buttons | |
| DIP Switch | 100BaseFX Full/Half duplex selection, port break alarm mask |
| Physical Characteristics | |
| Standards and Certifications | FCC Class A , UL, CE, UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone2 Ex nA nC op is IIC T4 Gc, IECEx Ex nA nC IIC T4 Gc , : EN 55022/24 , CISPR 22, EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (EFT), EN 61000-4-5 (Surge), EN 61000-4-6 (CS), EN 61000-4-8 (PFMF) , EN 61000-4-11 , RoHS, CRoHS, WEEE , IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, DNV, GL |
| Housing | Metal |
| Dimensions | 53.6x135x105mm |
| Weight | 0.63Kg |
| Operating Temperature | -40 to 75 ° C |
| Storage Temperature | -40 to 85 ° C |
| Operation Humidity | 5% to %95 non-condensing |
| Installation | Din-rail and wall mount |
ข้อมูลสินค้า
