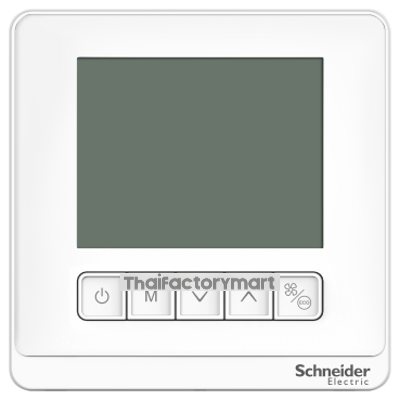

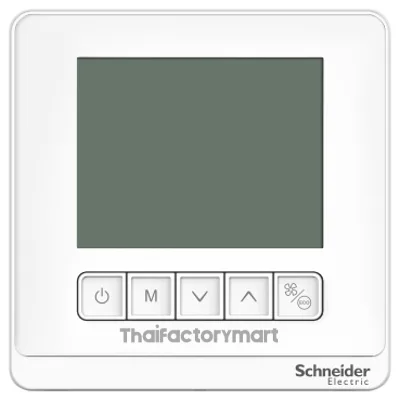

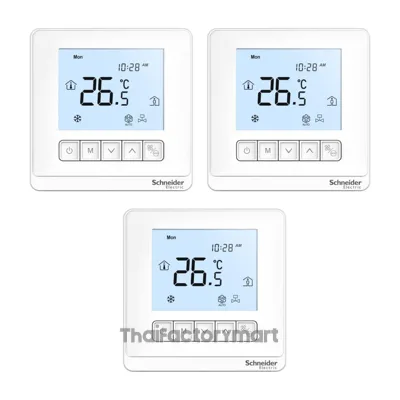

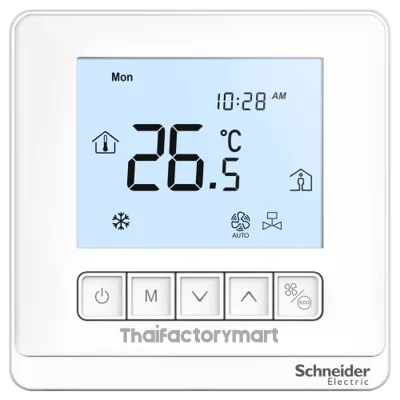

Thermostat, Spacelogic, fan coil on/off, standalone, LCD 5 Button, 2P, 3 fan, 240V, white

Name: TC903-3A2L
Brand: 0
SKU: TC903-3A2L
Availability: InStock

แบรนด์ : Schneider

Thermostat TC903-3A2L

รายละเอียดสินค้า

Spacelogic TC900 Series fan coil thermostats are optimized for office building, hotel, hospital and residential applications.
The thermostats can be used for 2 pipe or 4 pipe application to control HVAC applications.
TC900 series products are easy to operate and install, provides a microprocessor based control and large LCD display.
Display operation status (cooling, heating, and ventilation), fan speed, room temperature and set-point alongwith other features.
Features such as Eco button, sleep mode etc designed to maximise energy savings
White glass housing with mechnical button and large LCD display for better visibility
Products are designed for standard BS wall box installation
TC900 series thermostats are CE, RCM, UKCA, and EAC certified
The products and designed for easy installation and operation
Standalone thermostat to display and control fan coil based HVAC applications
Information Displayed: Ambient room temperature 0 to 50 Deg.C, Time, Day, Temperature alarm, Communication status ok, Current program
Measurement Accuracy: +/- 1 Deg.C

Complementary
Device application	Fan
Product specific application	2-pipe system
[Us] rated supply voltage	90...240 V AC 50/60 Hz
Network frequency	50 Hz 60 Hz
Max power consumption in W	1 W
Communication port protocol	-
Function available	Setpoint adjustment Fan control Mode selection Economiser Disable functions Alarm Low temperature protection
Colour	White
Housing colour	White
Control type	Mechanical, for thermostat 2 positions ON-OFF button, for actuator 3 speed control relay, for fan
display type	Backlit LCD screen
information displayed	Ambient room temperature 0 to 50 °C Time Day Temperature alarm Communication status ok Current program
Measurement accuracy	Temperature: +/- 1 °C,
Output voltage	240 V AC 5 A for relay 240 V AC 2 A for load
Connections - terminals	Screw terminal (back) - 2 cable(s) 1.5 mm² Screw terminal (back) - 1 cable(s) 2.5 mm²
Width	86 mm
Depth	40 mm
height	86 mm
Market segment	Small buildings Hotel Healthcare Residential

Environment
Temperature setting range	5…35 °C
Relative humidity	5…95 %
Ambient air temperature for operation	0…50 °C
Standards	EN/IEC 60730-1 EN/IEC 60730-2-9
Product certifications	CE
IP degree of protection	IP20
Pollution degree	2
