TZ-1XA-22L

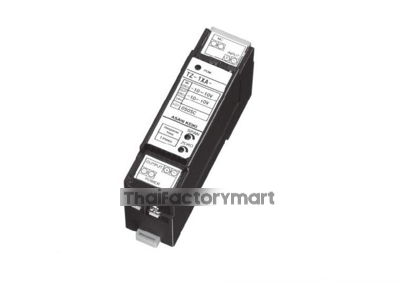

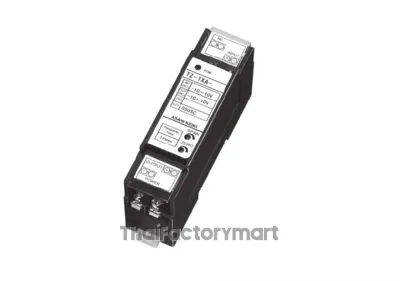

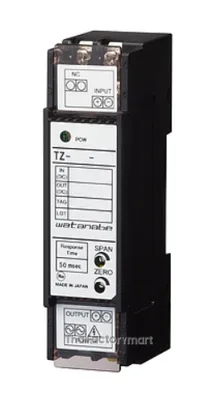

WATANABE Isolated Transducer TZ-1XA-2 Series



Specifications

Input	DC voltage/DC current
Output	DC voltage/DC current
Power	AC100〜240V DC24V
Accuracy	±0.1%fs
Response time(0→90%)	1ms or 50ms
Zero-Span adjustment	±5%fs
Dielectric strength	AC2000V(AC power supply) AC1500V(DC power supply)
Weight	Approx.80g
Standards & Approvals	※DC power supply model EN61326-1 EMIclassA EN IEC 63000
Dimensions(HWD)	98×25×41mm
Operating temperature/humidity	-5~+50℃　Lower limit 90%RH

รายการสินค้า

- TZ-1XA-20H
- TZ-1XA-20L
- TZ-1XA-21H
- TZ-1XA-21L
- TZ-1XA-22H
- TZ-1XA-22L
- TZ-1XA-23H
- TZ-1XA-23L
- TZ-1XA-24H
- TZ-1XA-24L
- TZ-1XA-25H
- TZ-1XA-25L
- TZ-1XA-26H
- TZ-1XA-26L
- TZ-1XA-27H
- TZ-1XA-27L
- TZ-1XA-2AH
- TZ-1XA-2AL
- TZ-1XA-2BH
- TZ-1XA-2BL
- TZ-1XA-2YH
- TZ-1XA-2YL
