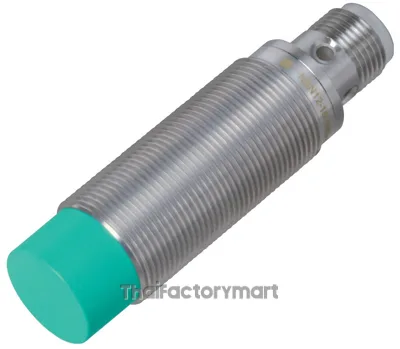

Pepperl + Fuchs, M18 x 1, PNP-NO Inductive Sensor 65mm Length, 10 - 30 V dc supply voltage , IP67 Rating
NBN8-18GM50-E2-V1
FLASH SALE
HOT
เอกสาร
THB0.00 THB3,200.00
จัดส่งภายใน 2–5 วัน
รายละเอียดสินค้า
Inductive sensor NBN8-18GM50-E2-V1
- 8 mm non-flush
- Extended temperature range -40 ... +85 °C
- Extended operating voltage range
- Flexible use with versatile mounting opportunities
Datasheet excerpt: Technical data of NBN8-18GM50-E2-V1
| General specifications | ||
|---|---|---|
| Switching function | Normally open (NO) | |
| Output type | PNP | |
| Rated operating distance | 8 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 ... 6.48 mm | |
| Actuating element | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 24 mm x 24 mm x 1 mm |
|
| Reduction factor rAl | 0.44 | |
| Reduction factor rCu | 0.42 | |
| Reduction factor r304 | 0.76 | |
| Reduction factor rBrass | 0.52 | |
| Output type | 3-wire | |
