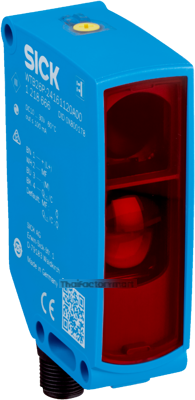

product image

WTB27-3P2421 : Photoelectric proximity sensor

1027754-WTB27-3P2421

เอกสาร

-

จัดส่งภายใน 2–5 วัน

  • รายละเอียดสินค้า
  • ข้อมูลสินค้า
  • แค็ตตาล็อก

รายละเอียดสินค้า

Functional principle Photoelectric proximity sensor
Functional principle detail Background suppression
Sensing range
Sensing range min. 30 mm
Sensing range max. 2,000 mm
Adjustable switching threshold for background suppression 180 mm ... 2,000 mm
Reference object Object with 90% remission factor (complies with standard white according to DIN 5033)
Minimum distance between set sensing range and background (black 6% / white 90%) 85 mm, at a distance of 800 mm
Recommended sensing range for the best performance 200 mm ... 800 mm
Emitted beam
Light source LED
Type of light Infrared light
Shape of light spot Point-shaped
Light spot size (distance) Ø 14 mm (1,000 mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) < +/- 1.0° (at Ta = +23 °C)
Key LED figures
Normative reference EN 62471:2008-09 | IEC 62471:2006, modified
LED risk group marking Free group
Wave length 850 nm
Average service life 100,000 h at Ta = +25 °C
Adjustment
Teach-Turn adjustment BluePilot: For setting the sensing range
IO-Link For configuring the sensor parameters and Smart Task functions
Indication
LED blue BluePilot: sensing range indicator
LED green Operating indicator
Static on: power on
Flashing: IO-Link mode
LED yellow Status of received light beam
Static on: object present
Static off: object not present
