รายละเอียดสินค้า

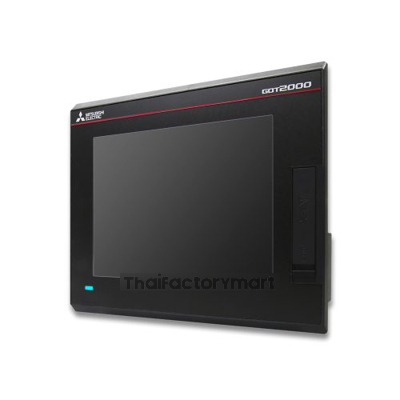

| Model name | GT2512-STBA |
| Overview | 12.1”, SVGA, TFT color LCD 65536 colors, Panel color: Black, Power supply voltage: 100 V AC to 240 V AC |
| Conformance standard | UL cUL CE(EMC) CE(LVD) CE(RoHS) KC LR NK DNV ABS RINA BV |
| Sales status | On sale |
Basic specifications
| Model | GT2512-STBA |
| Product name | GT25 model |
| Series name | GOT2000 |
| Model name | GT25 |
Performance specifications
|
Display section*1 *2
|
Display device
|
TFT color LCD
|
|
|
Screen size
|
12.1"
|
||
|
Resolution
|
SVGA: 800 x 600 dots
|
||
|
Display size
|
246 (W) x 184.5 (H) mm
(9.69 (W) x 7.26 (H) inch) |
||
|
Number of displayed characters
|
16-dot standard font: 50 characters x 37 lines (two-byte characters)
12-dot standard font: 66 characters x 50 lines (two-byte characters) |
||
|
Display color
|
65536 colors
|
||
|
Brightness adjustment
|
32 levels
|
||
|
Registrable number of screen
|
4096
|
||
|
Backlight
|
LED (not replaceable)
|
||
|
Backlight life*4
|
Approx. 60000 h (operating ambient temperature: 25°C, display intensity: 50%)
|
||
|
Backlight color
|
White
|
||
|
Touch panel*3 *11
|
Type
|
Analog resistive film
|
|
|
Key size
|
Minimum 2 x 2 dots*9 (per key)
|
||
|
Simultaneous press
|
Not available*5 (Only 1 point can be touched.)
|
||
|
Life
|
1 million touches or more (operating force: 0.98 N or less)
|
||
|
Panel color
|
Black
|
||
|
Human sensor
|
Detection length
|
－
|
|
|
Detection temperature
|
－
|
||
|
Memory
|
User memory
|
Capacity
|
Memory for storage (ROM) *12 : 32 MB
Memory for operation (RAM) : 80 MB |
|
Life (number of write times)
|
100000 times
|
||
|
Built-in clock precision
|
±90 seconds/month (ambient temperature: 25°C)
|
||
|
Battery
|
Type
|
GT11-50BAT lithium battery
|
|
|
Data to be backed up
|
SRAM data, clock data, system status log data
|
||
|
Life
|
Approx. 5 years (ambient temperature: 25°C)
|
||
|
Built-in interface
|
RS-232 interface
|
Number of channel
|
1 channel
|
|
Transmission speed
|
115200, 57600, 38400, 19200, 9600, 4800 bps
|
||
|
Connector shape
|
D-sub 9-pin (male)
|
||
|
RS-422/485 interface
|
Number of channel
|
1 channel
|
|
|
Transmission speed
|
115200, 57600, 38400, 19200, 9600, 4800 bps
|
||
|
Connector shape
|
D-sub 9-pin (female)
|
||
|
RS-422/232 interface
|
Number of channel
|
－
|
|
|
Transmission speed
|
－
|
||
|
Connector shape
|
－
|
||
|
Application
|
－
|
||
|
RS-422 interface
|
Number of channel
|
－
|
|
|
Transmission speed
|
－
|
||
|
Connector shape
|
－
|
||
|
Ethernet interface
|
Number of channel
|
1 channel
|
|
|
Transmission speed
|
100BASE-TX, 10BASE-T
|
||
|
Connector shape
|
RJ45 (modular jack) AUTO MDI/MDI-X
|
||
|
Bus interface
|
Type
|
－
|
|
|
Number of channel
|
－
|
||
|
RGB interface
|
－
|
||
|
Printer interface
|
－
|
||
|
USB interface (host)
|
Number of channel
|
2 channels (front face, rear face)
|
|
|
Maximum transfer rate
|
High-Speed 480 Mbps
|
||
|
Connector shape
|
USB-A
|
||
|
USB interface (device)
|
Number of channel
|
1 channel (front face)
|
|
|
Maximum transfer rate
|
High-Speed 480 Mbps
|
||
|
Connector shape
|
USB Mini-B
|
||
|
SD memory card interface*12
|
1 channel, SDHC compliant (maximum 32 GB)
|
||
|
CF card interface
|
－
|
||
|
PC card interface
|
－
|
||
|
Option function board interface
|
－
|
||
|
Memory board interface
|
－
|
||
|
Extension interface
|
For installing a communication unit or an option unit
|
||
|
Side interface
|
For installing a communication unit
|
||
|
Sound output interface
|
－
|
||
|
Buzzer output
|
Single tone (tone and tone length adjustable)
|
||
|
LED specifications
|
POWER LED
|
2 colors (blue and orange)
|
|
|
Installation method
|
Standard
|
||
|
Protective structure*6
|
Front: IP67F*7*10
Inside control panel: IP2X |
||
|
External dimensions
|
316 (W) x 246 (H) x 52 (D) mm
(12.44 (W) x 9.69 (H) x 2.05 (D) inch) |
||
|
Panel cut dimensions
|
302 (W) x 228 (H) mm
(11.89 (W) x 8.98 (H) inch) |
||
|
Weight (excluding a fitting)
|
2.4 kg
(5.3 lb) |
||
ข้อมูลสินค้า
GT27 model
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2715 | GT2715-XTBA | 15" XGA | TFT color 65536 colors |
Black | 100 to 240 V AC | Multimedia & Video/RGB compatible Multi-touch compatible |
| GT2715-XTBD | 24 V DC | |||||
| GT2712 | GT2712-STBA | 12.1" SVGA | Black | 100 to 240 V AC | ||
| GT2712-STBD | 24 V DC | |||||
| GT2712-STWA | White | 100 to 240 V AC | ||||
| GT2712-STWD *1 | 24 V DC | |||||
| GT2710 | GT2710-STBA | 10.4" SVGA | Black | 100 to 240 V AC | ||
| GT2710-STBD | 24 V DC | |||||
| GT2710-VTBA | 10.4" VGA | 100 to 240 V AC | ||||
| GT2710-VTBD | 24 V DC | |||||
| GT2710-VTWA | White | 100 to 240 V AC | ||||
| GT2710-VTWD *1 | 24 V DC | |||||
| GT2708 | GT2708-STBA | 8.4" SVGA | Black | 100 to 240 V AC | ||
| GT2708-STBD | 24 V DC | |||||
| GT2708-VTBA | 8.4" VGA | 100 to 240 V AC | ||||
| GT2708-VTBD | 24 V DC | |||||
| GT2705 | GT2705-VTBD | 5.7" VGA | Black | 24 V DC | Multi-touch compatible | |
- *1 To comply with the ATEX directive and KCs regulation, protective sheet (GT25-□□PSCC-UC) and special fitting (GT25-□□FIT-EXS) in the "Options" list are required separately. Communication units and option units cannot be used. When using these units, GOT does not conform to the standards. For the details, please refer to the Technical Bulletin
"GOT2000 Series in Compliance with the ATEX Directive and KCs Certification Requirements (GOT-A-0101-B) " (PDF).
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".
GT25 model
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2512 | GT2512-STBA | 12.1" SVGA | TFT color 65536 colors |
Black | 100 to 240 V AC | - |
| GT2512-STBD | 24 V DC | |||||
| GT2512F-STNA | - | 100 to 240 V AC | Open frame model | |||
| GT2512F-STND | 24 V DC | |||||
| GT2510 | GT2510-VTBA | 10.4" VGA | Black | 100 to 240 V AC | - | |
| GT2510-VTBD | 24 V DC | |||||
| GT2510-VTWA | White | 100 to 240 V AC | ||||
| GT2510-VTWD | 24 V DC | |||||
| GT2510F-VTNA | - | 100 to 240 V AC | Open frame model | |||
| GT2510F-VTND | 24 V DC | |||||
| GT2508 | GT2508-VTBA | 8.4" VGA | Black | 100 to 240 V AC | - | |
| GT2508-VTBD | 24 V DC | |||||
| GT2508-VTWA | White | 100 to 240 V AC | ||||
| GT2508-VTWD | 24 V DC | |||||
| GT2508F-VTNA | - | 100 to 240 V AC | Open frame model | |||
| GT2508F-VTND | 24 V DC | |||||
| GT2505 | GT2505-VTBD | 5.7" VGA | Black | 24 V DC | - | |
- *1 To comply with the ATEX directive and KCs regulation, protective sheet (GT25-□□PSCC-UC) and special fitting (GT25-□□FIT-EXS) in the "Options" list are required separately. (Only protective sheet is required for GT2508-VTWD.) Communication units and option units cannot be used. When using these units, GOT does not conform to the standards. For the details, please refer to the Technical Bulletin
"GOT2000 Series in Compliance with the ATEX Directive and KCs Certification Requirements (GOT-A-0101-B) " (PDF).
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved
GT25 wide model
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2512 | GT2512-WXTBD [NEW] | 12.1" WXGA | TFT color 65536 colors |
Black | 24 V DC | Wide model |
| GT2512-WXTSD [NEW] | Silver *1 | |||||
| GT2510 | GT2510-WXTBD | 10.1" WXGA | Black | |||
| GT2510-WXTSD | Silver *1 | |||||
| GT2507 | GT2507-WTBD | 7" WVGA | Black | |||
| GT2507-WTSD | Silver *1 | |||||
- *1 The lower part of the panel including the USB environmental protection cover is black.
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "
GT25 Handy GOT
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2506 | GT2506HS-VTBD | 6.5" VGA | TFT color 65536 colors |
Black | 24 V DC | Handy GOT |
| GT2505 | GT2505HS-VTBD | 5.7" VGA | 24 V DC | |||
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".
GT25 rugged model
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2507 | GT2507T-WTSD | 7" WVGA | TFT color 65536 colors |
Silver | 24 V DC | Rugged model |
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".
GT23 model
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2310 | GT2310-VTBA [September 30, 2023 to be discontinued] |
10.4" VGA | TFT color 65536 colors |
Black | 100 to 240 V AC | - |
| GT2310-VTBD [September 30, 2023 to be discontinued] |
24 V DC | |||||
| GT2308 | GT2308-VTBA [September 30, 2023 to be discontinued] |
8.4" VGA | Black | 100 to 240 V AC | - | |
| GT2308-VTBD [September 30, 2023 to be discontinued] |
24 V DC | |||||
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".
GT21 wide model
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2107 | GT2107-WTBD | 7" WVGA | TFT color 65536 colors |
Black | 24 V DC | Wide model |
| GT2107-WTSD | Silver *1 | |||||
- *1 The lower part of the panel including the USB environmental protection cover is black.
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".
GT21 model
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2104 | GT2104-RTBD | 4.3" [480×272 dots] |
TFT color 65536 colors |
Black | 24 V DC | Ethernet, RS-422/485, RS-232 |
| GT2103 | GT2103-PMBD | 3.8" [320×128 dots] |
TFT Monochrome (black/white) 32 shade grayscale 5-color LED (white, green, pink, orange, red) |
Black | 24 V DC | Ethernet, RS-422/485 |
| GT2103-PMBDS | 24 V DC | RS-232, RS-422/485 | ||||
| GT2103-PMBDS2 | 24 V DC | RS-232 × 2 channels | ||||
| GT2103-PMBLS | 5 V DC | RS-422 (FXCPU connection only) | ||||
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".
