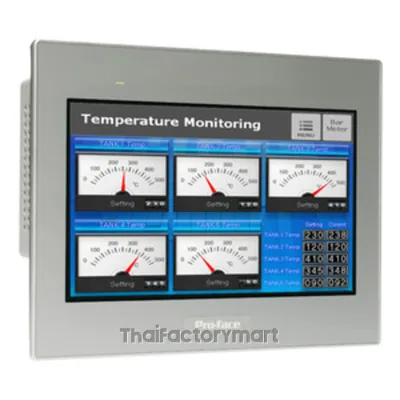

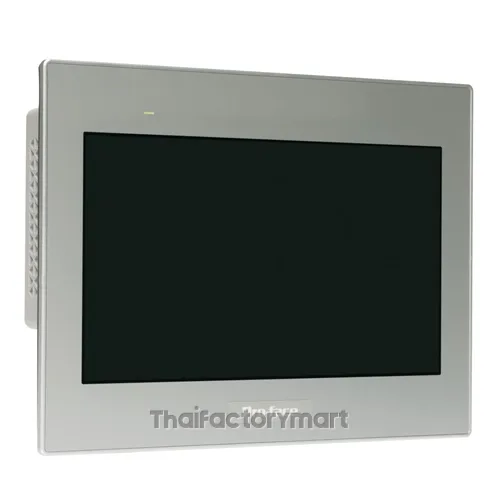

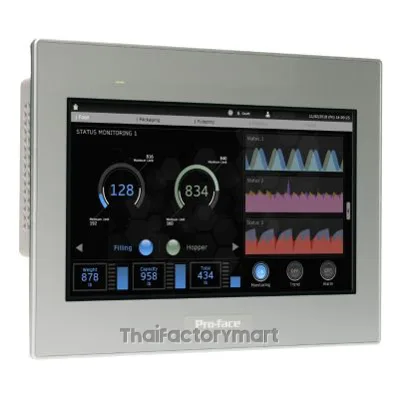

PFXST6500WAD, 10"W touch panel display, 2COM, 2Ethernet, USB host&device, 24VDC
PFXST6500WAD
FLASH SALE
HOT
เอกสาร
THB0.00 THB33,500.00
รายละเอียดสินค้า
Series ST6000 Series
Size 10″ Wide (WSVGA)
Model PFXST6700WAD
Global Code PFXST6500WAD
Product Features 10″ DC Analog
16 million colors
Resistive film (analog)
COM1: RS-232C, COM2: RS-422/485, Ethernet x 2, USB Type A x 1, USB micro-B x 1
Repair Status ✔
Input voltage limits 19.2 to 28.8 Vdc
PFXST6500WADE
Functional Specifications
|
Display Type
|
TFT Color LCD
|
|---|---|
|
Display Size
|
(10.1-inch) Wide
|
|
Resolution
|
WSVGA TFT(1,024 x 600 Pixels)
|
|
Effective Display Area
|
222.72 x 125.28 mm (8.77 x 4.93 in)
|
|
Display Colors
|
16 million colors
|
|
Backlight
|
Backlight White LED (Not user replaceable. When replacement is required, contact customer support.)
|
|
Brightness Control
|
16 levels (Adjusted with touch panel or software)
|
|
Application Memory
|
PFXST6500WAD
When using BLUE:FLASH EPROM 128MB Removable System: No PFXST6500WADE When using GP-Pro EX: - Media: FLASH EPROM - Screen Area: 64MB *Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used. - User Font Area: 8MB - Logic Program Area: 132KB (Equivalent to 15,000 steps) *Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB. - Free Space: None Removable System: No |
|
Touch Panel Type
|
Resistive film (analog, single touch)
|
|
Touch Panel Resolution
|
1024 x 1024
|
|
Ethernet (LAN)
|
IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX, Connector: Modular jack (RJ-45) x 2
|
|
USB (TYPE-A)
|
Connector: USB 2.0 (Type A) x 1, Power supply voltage: 5 Vdc ±5 %, Maximum current supplied: 500 mA, Communication distance: 5 m [16.4 ft.]
|
General Specifications
|
International Safety Standards
|
     |
|---|---|
|
Rated Input Voltage
|
24 Vdc
|
|
Input Voltage Limits
|
19.2 to 28.8 Vdc
|
|
Allowable Voltage Drop
|
10 ms or less
|
|
Power Consumption
|
9.6 W or less when power is not supplied to devices via fron USB, 4.6 W or less when screen turns off the backlight (standby mode) (Max 12.6 W)
|
|
In-Rush Current
|
30 A or less
|
|
Voltage Endurance
|
1,000 Vac, 20 mA for 1 minute (between charging and FG terminals)
|
|
Insulation Resistance
|
500 Vdc, 10 MΩ or more
|
|
Dust
|
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
|
|
Pollution Degree
|
For use in pollution degree 2 environment
|
|
Vibration Resistance
|
IEC/EN 61131-2 compliant, 5 to 9 Hz single amplitude 3.5 mm [0.14 in.], 9 to 150 Hz fixed acceleration: 9.8 m/s2, X, Y, Z directions for 10 cycles (approx. 100 min.)
|
|
Structure
|
IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure
|
|
Cooling Method
|
Natural air circulation
|
|
Weight Approx.
|
1.3 kg (2.87 lb) or less
|
|
External Dimensions
|
273 x 203 x 47 mm (10.75 x 7.99 x 1.85 in)
|
|
Panel Cut Dimensions
|
255 x 203 mm (10.04 x 7.28 in) Panel thickness area: 1.6...5 mm (0.06...0.2 in)
|
External Dimensions
Panel Cut-Out
|
A
|
B
|
C
|
|
255 mm (+1/-0 mm)
(10.04 in [+0.04/-0 in]) |
185 mm (+1/-0 mm)
(7.25 in [+0.04/-0 in]) |
1.6...5 mm
(0.06...0.2 in) |
ข้อมูลสินค้า
ST6000 Series Lineup / Specifications
Wide Model
| Product Name | Display Size | Software | Model No | Color | Touch Panel | Interface | Details |
|---|---|---|---|---|---|---|---|
 ST-6700WA |
15" Wide (FWXGA) |
 |
PFXST6700WAD |
16 million colors |
Resistive film (analog) |
COM1: RS-232C COM2: RS-422/485 Ethernet x 2 USB Type A x 1 USB micro-B x 1 |
Specifications |
 |
PFXST6700WADE |
Specifications | |||||
 ST-6600WA |
12" Wide (WXGA) |
|
PFXST6600WAD | Specifications | |||
|
PFXST6600WADE | Specifications | |||||
 ST-6500WA |
10" Wide (WSVGA) |
|
PFXST6500WAD | Specifications | |||
|
PFXST6500WADE | Specifications | |||||
 ST-6400WA |
7" Wide (WVGA) |
|
PFXST6400WAD | Specifications | |||
|
PFXST6400WADE | Specifications | |||||
 ST-6200WA |
4" Wide (WQVGA) |
|
PFXST6200WAD | COM1: RS-232C/422/485 Ethernet x 1 USB Type A x 1 USB micro-B x 1 |
Specifications | ||
|
PFXST6200WADE | Specifications |
4:3 Model
| Product Name | Display Size | Software | Model No | Color | Touch Panel | Interface | Details |
|---|---|---|---|---|---|---|---|
 ST-6500T |
10.4" (SVGA) | |
PFXST6500TADE | 16 million colors |
Resistive film (analog) |
COM1: RS-232C COM2: RS-422/485 Ethernet x 1 USB Type A x 1 USB micro-B x 1 SD Card I/F |
Specifications |
 ST-6300T |
5.7" (VGA) | PFXST6300TADE | 262,144 colors | COM1: RS-232C COM2: RS-422/485 Ethernet x 1 USB Type A x 1 USB micro-B x 1 |
Specifications |
