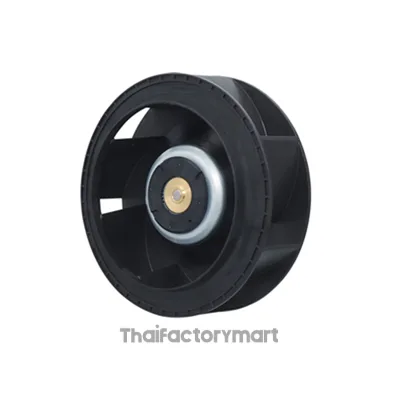

9TGA24P0H001 High speed 175x69mm 17569 24v 175mm Air Purifier Centrifugal Fans
9TGA24P0H001
เอกสาร
-
จัดส่งภายใน 2–5 วัน
รายละเอียดสินค้า
9TGA24P0H001 9TGA48P0G001 High speed 175x69mm 17569 24v 48V 175mm Air Purifier Centrifugal Fans
- Round - 175mm Dia 69.00mm 541.0 CFM (15.15m³/min) 3.330 in H2O (829.5 Pa) Ball Motorized Impellers PWM Control, Speed Sensor (Tach) 77.0dB(A) 115 W 4950 RPM 4 Wire Leads - -4 ~ 158°F (-20 ~ 70°C) cURus, TUV 1.6 lbs (725.7 g)
Product Specifications
| Type | Description |
|---|---|
| Series: | San Ace C175 |
| Package: | Bulk |
| Part Status: | Active |
| Voltage - Rated: | 24VDC |
| Size / Dimension: | Round - 175mm Dia |
| Width: | 69.00mm |
| Air Flow: | 541.0 CFM (15.15m³/min) |
| Static Pressure: | 3.330 in H2O (829.5 Pa) |
| Bearing Type: | Ball |
| Fan Type: | Motorized Impellers |
| Features: | PWM Control, Speed Sensor (Tach) |
| Noise: | 77.0dB(A) |
| Power (Watts): | 115 W |
| RPM: | 4950 RPM |
| Termination: | 4 Wire Leads |
| Ingress Protection: | - |
| Operating Temperature: | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency: | cURus, TUV |
| Weight: | 1.6 lbs (725.7 g) |
ข้อมูลสินค้า
| Model no. | Product name | Frame size[mm] | Frame thickness[mm] | Rated voltage[V] | Rated current[A] | Rated input[W] | Rated speed [min-1] |
|||||||||
| 9TD12P6G001 | Centrifugal Fan | φ70 | 20 | 12 | 1.0 | 12 | 9200 | 1.13 | 39.9 | 560 | 2.24 | 61 | 40000/60℃ (70000/40℃) | Pulse sensor | Yes | No |
| 9TM24P4H01 | Centrifugal Fan | φ100 | 25 | 24 | 0.44 | 10.56 | 6400 | 1.77 | 62.5 | 560 | 2.25 | 60 | 40000/60℃ (70000/40℃) | Pulse sensor | Yes | No |
| 9TM48P4H01 | Centrifugal Fan | φ100 | 25 | 48 | 0.22 | 10.56 | 6400 | 1.77 | 62.5 | 560 | 2.25 | 60 | 40000/60℃ (70000/40℃) | Pulse sensor | Yes | No |
| 9TJ24P0H61 | Centrifugal Fan | φ133 | 91 | 24 | 1.2 | 28.8 | 4150 | 6.39 | 226 | 395 | 1.59 | 61 | 40000/60℃ (70000/40℃) | Pulse sensor | Yes | No |
| 9TJ48P0H01 | Centrifugal Fan | φ133 | 91 | 48 | 0.55 | 26.4 | 4150 | 6.39 | 226 | 395 | 1.59 | 61 | 40000/60℃ (70000/40℃) | Pulse sensor | Yes | No |
| 9TN24P1H01 | Centrifugal Fan | φ150 | 35 | 24 | 0.62 | 14.9 | 3800 | 3.83 | 135 | 410 | 1.65 | 59 | 40000/60℃ (70000/40℃) | Pulse sensor | Yes | No |
| 9TN48P1H01 | Centrifugal Fan | φ150 | 35 | 48 | 0.32 | 15.4 | 3800 | 3.83 | 135 | 390 | 1.57 | 59 | 40000/60℃ (70000/40℃) | Pulse sensor | Yes | No |
| 9TGA24P0H001 | Centrifugal Fan | φ175 | 69 | 24 | 4.8 | 115 | 4950 | 15.3 | 541 | 830 | 3.33 | 77 | 40000/60℃ (70000/40℃) | Pulse sensor | Yes | No |
| 9TGA48P0G001 | Centrifugal Fan | φ175 | 69 | 48 | 3.5 | 168 | 5700 | 17.6 | 622 | 1100 | 4.42 | 80 | 40000/60℃ (70000/40℃) | Pulse sensor | Yes | No |
| 9TG24P0G01 | Centrifugal Fan | φ175 | 69 | 24 | 3.9 | 93.6 | 4700 | 14.0 | 494.7 | 885 | 3.55 | 73 | 40000/60℃ (70000/40℃) | Pulse sensor | Yes | No |
| 9TG24P0S01 | Centrifugal Fan | φ175 | 69 | 24 | 2.35 | 56.4 | 3900 | 11.6 | 409.8 | 609 | 2.45 | 69 | 40000/60℃ (70000/40℃) | Pulse sensor | Yes | No |
| 9TG48P0G01 | Centrifugal Fan | φ175 | 69 | 48 | 1.95 | 93.6 | 4700 | 14.0 | 494.7 | 885 | 3.55 | 73 | 40000/60℃ (70000/40℃) | Pulse sensor | Yes | No |
| 9TP24P0H001 | Centrifugal Fan | φ221 | 71 | 24 | 3.2 | 76.8 | 3050 | 17.6 | 622 | 530 | 2.13 | 71 | 40000/60℃ (70000/40℃) | Pulse sensor | Yes | No |
| 9TP48P0G001 | Centrifugal Fan | φ221 | 71 | 48 | 2.75 | 132 | 3650 | 21 | 742 | 760 | 3.05 | 74 | 40000/60℃ (70000/40℃) | Pulse sensor | Yes | No |
| 9TP48P0H001 | Centrifugal Fan | φ221 | 71 | 48 | 1.6 | 76.8 | 3050 | 17.6 | 622 | 530 | 2.13 | 71 | 40000/60℃ (70000/40℃) | Pulse sensor | Yes | No |
| 9TS48P0G001 | Centrifugal Fan | φ225 | 99 | 48 | 3.65 | 175.2 | 3550 | 28.1 | 992 | 861 | 3.46 | 74.5 | 40000/60℃ (70000/40℃) | Pulse sensor | Yes | No |
| 9TS48P0H001 | Centrifugal Fan | φ225 | 99 | 48 | 2.08 | 99.8 | 2900 | 22.7 | 802 | 590 | 2.37 | 70.5 | 40000/60℃ (70000/40℃) | Pulse sensor | Yes | No |
| 9B1TP24P0H001 | Centrifugal Fan | 270 | 99 | 24 | 3.2 | 76.8 | 3050 | 17.6 | 622 | 530 | 2.13 | 71 | 40000/60℃ (70000/40℃) | Pulse sensor | Yes | No |
| 9B1TP48P0G001 | Centrifugal Fan | 270 | 99 | 48 | 2.75 | 132 | 3650 | 21.0 | 742 | 760 | 3.05 | 74 | 40000/60℃ (70000/40℃) | Pulse sensor | Yes | No |
| 9B1TP48P0H001 | Centrifugal Fan | 270 | 99 | 48 | 1.6 | 76.8 | 3050 | 17.6 | 622 | 530 | 2.13 | 71 | 40000/60℃ (70000/40℃) | Pulse sensor | Yes | No |
| 9B1TS48P0G001 | Centrifugal Fan | 270 | 119 | 48 | 3.65 | 175.2 | 3550 | 28.1 | 992 | 861 | 3.46 | 74.5 | 40000/60℃ (70000/40℃) | Pulse sensor | Yes | No |
| 9B1TS48P0H001 | Centrifugal Fan | 270 | 119 | 48 | 2.08 | 99.8 | 2900 | 22.7 | 802 | 590 | 2.37 | 70.5 | 40000/60℃ (70000/40℃) | Pulse sensor | Yes | No |
