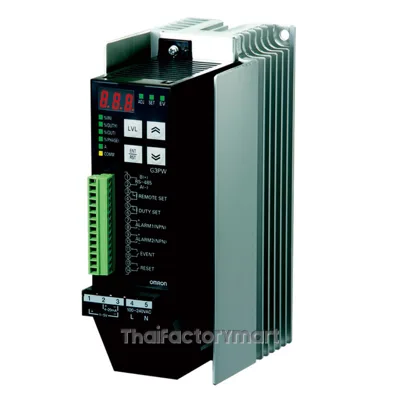

G3PW-A245EC-C-FLK
เอกสาร
-
จัดส่งภายใน 2–5 วัน
รายละเอียดสินค้า
Specifications
| Application | Power control |
| Number of phases | 1 |
| Mounting method | Screw |
| Terminal | Push-in |
| Features | Constant current |
| LED indicator | |
| Rated operational voltage, AC | 100-240 V |
| Operating voltage range, AC | 85-264 V |
| Rated operation current Ie at AC-1 | 45 A |
| Permissible I²t value | 1600 A²s |
| Applicable heater capacity (AC1: resistive load) | 11 kW |
| Product Height (unpacked) | 188 mm |
| Product Width (unpacked) | 70 mm |
| Product Depth (unpacked) | 155 mm |
| Supply voltage DC | 1-5 V |
| Maximum operating temperature | 55 °C |
| Minimum operating temperature | -15 °C |
| Functions | Heater burnout detection |
| Communication port(s) | Serial RS-485 |
